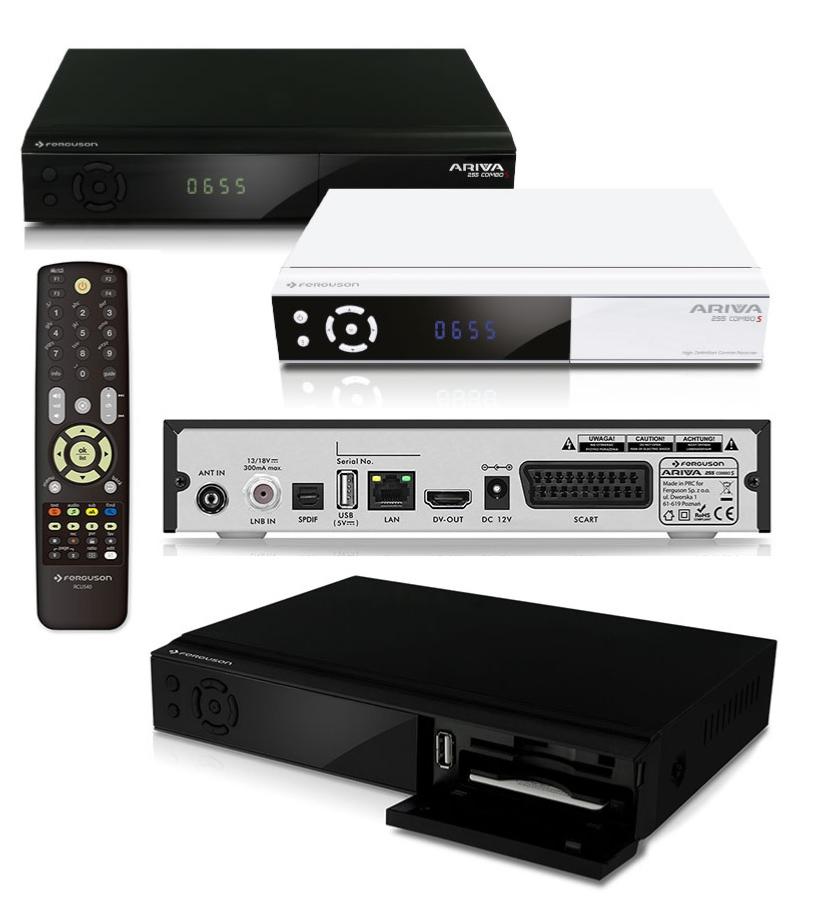

Ferguson Ariva 255 COMBO S
Récepteur Combo ARIVA 255 COMBO S : un tuner sat DVBS/DVBS2 , un tuner terrestre DVBT/DVBT2 . MPEG2/MPEG4 , H265/HEVC .
Enregistrements sur disque externe via USB, excellente qualité audio/vidéo , port PCMCIA CI/CI+ et lecteur embarqué, à prix très doux ! Très bon fonctionnement avec module Viaccess Neotion secure et même CAM+Carte Fransat . CI+ officiel .
Livré avec Manuel en français,
télécommande
pile
alimentation
Les plus produit :
Menu en français
classement automatique des chaînes TNT (terrestre) dans l'ordre
CI+ officiel
Compatible avec CAM+carte Fransat,
Compatible avec module Viaccess et carte BIS TV, cartes X sous Viaccess , carte Suisse...
Compatible avec CAM+Carte Tivusat
Un excellent moyen de recevoir la TNT française et d'autres offres françaises ou étrangères via satellite,
avec une seule télécommande .
Vendu sans carte et sans module .
Module Viaccess , CAM+Carte Fransat , CAM+carte Tivusat vendus séparément .
FERGUSON ARIVA 255 COMBO S
Technical Specifications
Main Features
- STB type: DVB-S2+T2 combo receiver
- Main chipset: ALI M3529
- CPU frequency: 594MHz
- Flash memory: 1PC 8MB SPI FLASH
- SDRAM memory: 1PC 128MB DDR3
- Mechanical: W case
- Interface: ANT in, LNB in, USB, S/PDIF, LAN, HDMI, SCART, DC12V
- Function type: Single CI
- Condition Access: CA
DVB-S2 Tuner
- Tuner type: M3031 on-board
- Demodulator S2: Embedded
- Frequency range: 950 ~ 2150MHz
- Input impedance: 75Ω
- LNB power and polarization: Vertical 13VDC; Horizontal 18VDC @ 400mA (max) 22KHz±0.4KHz(0.6V±0.2V) tone; Overload Protection
- Input level range: -65dBm ~ -25dBm
- Loop-through: No loop through
DVB-T2 Tuner
- Tuner type: R836 On board
- Demodulator T2: AVL6762
- Frequency range: 50 ~ 870MHz
- Input impedance: 75Ω
- Antenna power: 5V
- Loop-through: No loop through
Video Decoding
- Video decoding: MPEG2 ISO/IEC 13818-2 MP@ML, H.264 (MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL, H.265/HEVC 10bit
- Aspect ratio: 4:3, 16:9
- Video resolutions: 1920×1080, 1280×720, 720×480
Audio Decoding
- Audio decoding: MPEG-1 layerI/II, PCM downmix, IEC958 S/PDIF
- Sound mode: LEFT/RIGHT/STEREO/MONO
- Sampling frequency: 32KHz, 44.1KHz, 48KHz
AV Output
- HDMI: HDMI 1.4
- HDMI interface: 480i/p, 576i/p, 720p, 1080i, 1080p
- Video bandwidth: SD:5.0MHz (-3dB)
- Video impedance: 75Ω
- Video voltage Level: 1.0 Vp-p
- Audio freq. range: 20 ~ 20KHz
- Audio impedance: 600Ω
- Audio voltage level: 2V rms (5.6Vp-p)
Software Features
- MPEG: MPEG2 SD, MPEG2 HD, MPEG4 SD/HD, H.265/HEVC 10bit SD/HD
- CA Type: Embedded Conax
- SCPC/MCPC: SCPC and MCPC receivable from C/Ku band satellite
- PAL/NTSC: Automatic PAL/NTSC conversion
- Channels number: 5000 channels of programmable TV and Radio
- Favorites: 32 different favorite groups selection
- OSD language: Multi-language OSD (English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Arabic, Polish, etc)
- EPG: Full support up to 7 days Electronic Program Guide (EPG)
- PIG: Picture in Graphics (PIG) support
- Color OSD: 16-bit color On Screen Display
- Network: Automatic network search for newly added transponders
- DiSEqC: DiSEqC 1.2 full support, 13/18V, 0/22K LNB control
- Channel edit: Various channel editing functions (favorite, moving, locking, renaming, deleting and sorting)
- Parental control: Parental control for channels
- Easy menu: Ease to use Menu System
- Software upgrade: Supported via USB
- Timer: 8 Timer reservations with automatic switch to a specific channel
- Subtitle: Subtitle support DVB EN300743 and EBU
- Teletext: Teletext support DVB ETS300472 by VBI and OSD
- Save channel: Automatic save for last channel
- Sort channel: Channel list can be sorted by alphabetic A-Z, Scramble, Favorite, Lock, Sat
- MutiPicture: Dual display – HD and SD simultaneous
- USB disk: Support for FAT16/FAT32/FAT12/NTFS
- Folder browser: Only list JPEG/BMP files
- Games: Games (Tetris, Othello, Sudoku)
- Recording: 1 recording with timeshift capability
Environment
- Power supply: DC 12V
- Maximum power consumption: Max 18W
- Operating temperature: -5 ~ 45°C
- Storage temperature: -40 ~ 60°C
- Humidity: <95%
- Standby: <0.5W
- Dimensions (LxWxH): 220 x 160 x 40mm
- Weight: 1kg
