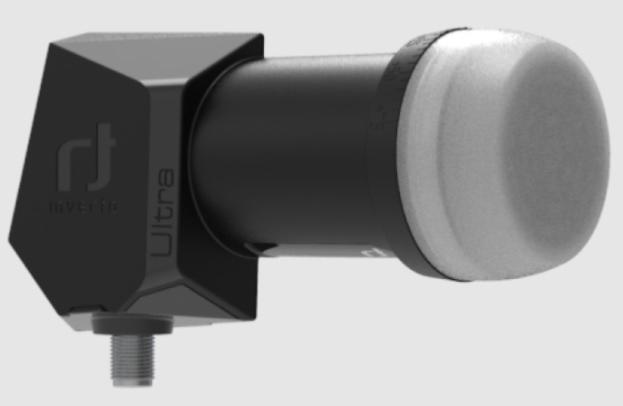

LNB SINGLE INVERTO Black Ultra PLL
  • LNB SINGLE INVERTO Black Ultra PLL
  • LNB SINGLE INVERTO Black Ultra PLL

LNB SINGLE INVERTO Black Ultra PLL

Shopping Satisfaction
INVERTO
(Code: IBUS_PLL)
En Stock
La version PLL du fameux LNB SINGLE INVERTO Black Ultra 40mm.
Série High Gain Low Noise
REF : IDLT-SNL412-ULTRA-OPN

11,50 €
250g
Description


Technical specifications
Low band input frequency range 10.7 GHz ~ 11.7 GHz
Low band output frequency range 950 MHz ~ 1950 MHz
Low band LO frequency
9.75 GHz
High band input frequency range
11.7 GHz ~ 12.75 GHz
High band output frequency range 1100 ~ 2150 MHz
High band LO frequency
10.6 GHz
Noise figure
0.2 dB typ. (0.7 dB max.)
LO temperature drift ± 2.0 MHz max.
LO initial accuracy ± 1.0 MHz max.
LO phase noise @ 1 kHz -70 dBc/Hz
LO phase noise @ 10 kHz
-80 dBc/Hz
LO phase noise @ 100 kHz -90 dBc/Hz
LO phase noise @ 1 MHz -100 dBc/Hz
Conversion gain
60 ~ 70 dB
Gain ripple (over 26 MHz bandwidth) 1 dB max. (peak-to-peak)
Gain variation (over full band) 4 dB max. (peak-to-peak)
Image rejection
50 dB min.
3th order intermodulation - ICP3 +10 dBm min
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V)
10.0 V ~ 14.0 V
Control signal Cb (H)
16.0 V ~ 20.0 V
Control signal Cc (band switching)
22 kHz ± 4 kHz, 0.4V – 0.8V pp
Output VSWR
2.0 : 1 max.
In band spurious level -65 dBm max.
Current consumption
100 mA max. (10 VDC ~ 20 VDC)
Operating temperature
-30 °C ~ +60 °C
Output impedance
75 Ω (F-type)
Output connector type
F-Type (female)
Weight 111.2 g

Avis clients
Shopping Satisfaction
 5/5
Superb item.
Michael C.
Shopping Satisfaction
 5/5
Very good value.
Michael C.
Shopping Satisfaction
 5/5
La puissance en reception difficile, avec parabole de 85 est forte : 100%.
La qualite en reception difficile est excellente et comprise entre 72 75 %
Tient parfaitement la charge sur 65m ( voire 130m de cable au total )



.
Philippe B.
Merci!
2GALLI SARL
Shopping Satisfaction
 5/5
TB.
Sylvain T.
Shopping Satisfaction
 4/5
4/5.
Jean k.
Shopping Satisfaction
 5/5
Bonne qualité confirmee.
Jacques A.
Shopping Satisfaction
 5/5
Meilleure réception que mon ancien LNB.
JOSEPH B.
