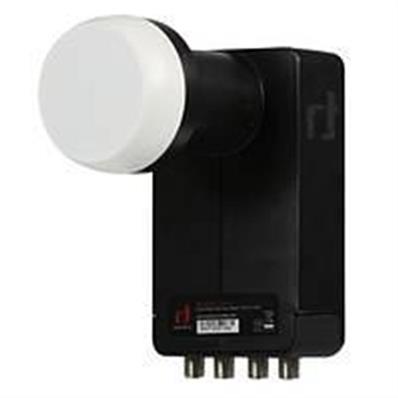

LNB QUATTRO INVERTO Black Ultra

LNB QUATTRO INVERTO Black Ultra

Shopping Satisfaction
(1)
INVERTO
(Code: IBUQT)
En Stock
LNB QUATTRO INVERTO Black Ultra .
Série High Gain Low Noise
REF : IDLB-QUTTR40-ULTRA-OPP
Pour raccordement à un multiswitch !

19,80 €
490g
-+
Ajouter au Panier
Description

LNB QUATTRO quatre sorties , pour alimenter un multiswitch .

INVERTO QUATTRO BLACK ULTRA

REF : IDLB-QUTTR40-ULTRA-OPP

Série High Gain Low Noise

Low Band Input Frequency Range

10.7~11.7 GHz

Low Band Output Frequency Range

950~1950 MH

LO Frequency

9.75 GHz

High Band Input Frequency Range

11.7~12.75 GHz
High Band Output Frequency Range 1100~2150 MHz
LO Frequency 10.6 GHz
Noise Figure 0.2dB typ. (0.7dB max.)
LO Initial Accuracy +/- 1.0 MHz max.
LO Temperature Drift +/- 3.0 MHz max.
LO Phase Noise @ 10K Hz -90 dBc/Hz max.
Conversion Gain 60 dB min.
Gain Ripple +/- 0.75 dB/27MHz
Gain Variation +/- 4 dB
Image Rejection 40 dB min.
1 dB Compression Point (O/P) 0.0 dBm min.
Cross talk 23 dB min.
Control Signals Ca [ V ] 11.0~14.0 V
Control Signals Cb [ H ] 16.0~20.0 V
Control Signals Cc [Band switching] 22 KHz +/- 4 KHz 0.4 V - 0.8 V pp
Output VSWR 2.0 : 1
Radiated Interference -60 dBm max.
DC Power 200 mA max. @ 11 - 20V
Working Temperature -30~+60 °C
Output Impedance (connect to STB) 75 Ω
Output connector F-type (female)
Weight 344 g
