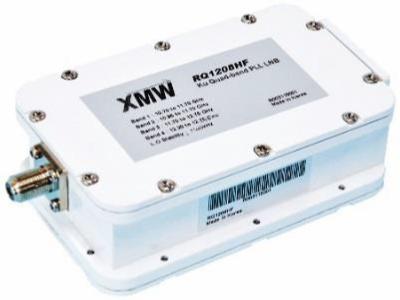

LNB BANDE KU-QUAD RQ1208HF / WR75

LNB BANDE KU-QUAD RQ1208HF / WR75

XMW
(Code: RQ1208HF)
En Stock
LNB BANDE KU-QUAD INTERFACE WR75.
1.054,80 €
1000g
Description
TYPICAL SPECIFICATIONS

Noise : 0.8 dB

LO stability : ±5 to ±25 KHz

Phase noise :
-73dBc/Hz at 1KHz
-78dBc/Hz at 10KHz
-100dBc/Hz at 100KHz
-110dBc/Hz at 1MHz

Input VSWR : 2.2 : 1

Output VSWR : 2.0 : 1

Gain : 55dB typ

Gain flatness : ±2dB max

Output P1dB : +15dBm min

IP3 : +25dBm min

RF input level : -30dBm max

Spurious :
Signal related : -50dBc max at -10dBm
Power supply related : -50dBc max at -10dBm
Harmonics : -30dBc max at -10dBm

Image rejection :
Band 1: 40dBc min
Band 2: 40dBc min
Band 3: 20dBc min
Band 4: 10dBc min

LO leakage (Input) : -60dBm max

Switching voltage :
Band-1: +13V
Band-2: +13V / 22KHz Tone
Band-3: +18V
Band-4: +18V / 22KHz Tone

Tone condition :
Frequency : 22KHz ±4KHz
Amp. : 0.6±0.2 V
Duty Cycle : 50%±10%

DC voltage / current : +12 to +19 V / 350mA

Input waveguide : WR 75

Output connector : F-female

Dimensions : 121(L) x 69(W) x 40(H) mm

Weight : 480g

Operating temperature : -40 to 60°C



FREQUENCY BANDS AVAILABLE :

Band-1
RF freq. (GHz) : 10.70 - 11.70
LO freq. (GHz) : 9.75
IF freq. (MHz) : 950 - 1950

Band-2
RF freq. (GHz) : 10.95 - 11.70
LO freq. (GHz) : 10.00
IF freq. (MHz) : 950 - 1700

Band-3
RF freq. (GHz) : 11.70 - 12.75
LO freq. (GHz) : 10.75
IF freq. (MHz) : 950 - 2000

Band-4
RF freq. (GHz) : 12.25 - 12.75
LO freq. (GHz) : 11.30
IF freq. (MHz) : 950 - 1450
