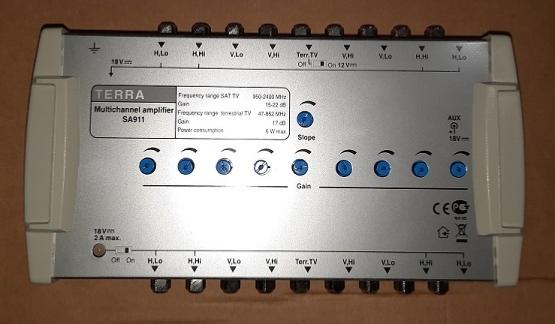

Caractéristiques techniques :
Frequency range SAT IF : 950-2400 MHz
Terr. TV : 47-862 MHz
Gain SAT IF : 15-22 dB (0 ÷ -10 dB adjustable)
Terr. TV : 17 dB (0 ÷ -17 dB adjustable)
Slope SAT IF : 7 dB(fixed)
Terr. TV : 0 ÷ -15 dB (adjustable)
Isolation SAT/SAT : 30 dB
SAT/Terr. TV : 30 dB
Noise figure, typical : ≤ 9 dB
Output level IMD3=60 dB (DIN45004B) : 112 dBµV (for terrestrial TV)
Output level IMD3=35 dB (EN50083-3) : 114 dBµV (for SAT IF)
DC pass through, switchable through H lines : 2 A max.
Power consumption : DC 9-18 V 6 W
Operating temperature range : -20°C / + 50°C
Dimensions/Weight : 234x128x53 mm / 0.75 kg
